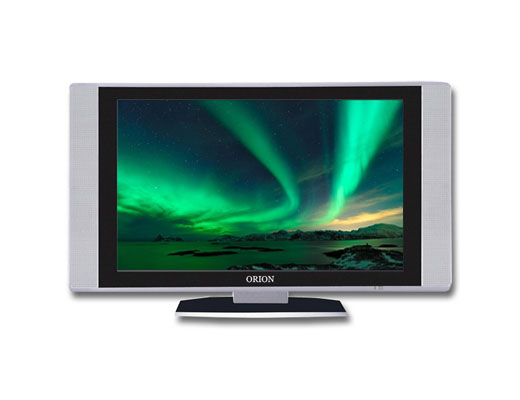

ORION

enlarge

Descriptions
Manual

Technical Performance

• LCD TV with remote control function
• PC monitor capability
• Size 32" (80 cm)
• Channels memory - 200
• Multi language menu (including Russian)
• Power supply - AC 100V-240V, 50-60 Hz
• Power consumption - 200W (max); 2W (standby)

Display

• Ratio - 16:9
• Resolution - 1366 x 768
• Brightness - 450 cd/m2
• Contrast - 1000:1
• Viewing angle - 85/85/85/85
• Frequency (H) - 48 KHz
• Frequency (V) - 56-75 KHz
• Pixel size (mm) - 0,1730 (H) x 0,519 (V)
• Reaction time - 23 ms
• Number of colours - 16,7 millions

Systems and Signals

• TV broadcasts and video playback systems: PAL/SECAM B/G, D/K
• Automatic and manual channels tuning
• Automatic frequency tuning (AFT) of channels
• Direct channel input
• "Recall" function (switching between last and current programs)
• Program sort function; input/correct name of the program
• Tuner's frequencies: VHF(L): 46.25-168.25MHz; VHF(H): 175.25-463.25MHz; UHF: 471.25-863,25MHz
• Channels (CATV): Mid band: X- Z, S1- S10; Super band: S11- S20; Hyper band: S21- S41


• Picture types 16:9, 14:9, 4:3, Panorama, 4:3 Letterbox (Zoom)
• “Picture in picture” function (PIP)
• “Picture out picture” function (POS modes POP 4:3, 6 Windows, 9 Windows)
• On-touch picture freeze function
• Automatic noise reduction and blue background in the case of none TV signal

Sound

• 2 built-in speakers
• Sound output - 2 x 10W
• Four sound modes
• Equalizer
• NICAM/IGR programs receiving
• On-touch mute function

Automatic switching off/on

• Sleep timer
• Switching on/off timer

Other

• Teletext
• Parental control

Inputs and Outputs

• Radio frequency (RF) antenna input
• AV, HDMI/DVI, D-SUB
• SCART
• S-Video
• Component Video (YPbPr)
• Mini Phone Jack for VGA/DVI
• Headphone input

Complement

• Remote control
• Table stand
• User's Manual and Warranty card
