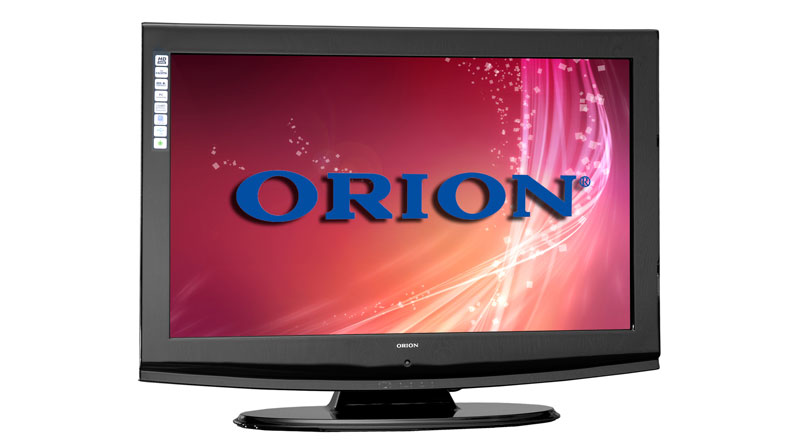

ORION

enlarge

Descriptions
Manual

Technical Performance

• LCD TV with remote control function
• Size – 32” (80 cm)
• PC monitor capability
• Touch control keys on control panel
• Full functioning remote control
• Multi language menu (Russian, English...)
• Comprehensive Inputs / Outputs system
• Power supply – AC 220-240 В ,  50 Hz
• Power consumption (max): 150 W

Display

• Ratio - 16:9
• Resolution - 1366 x 768 / 60 Hz
• Brightness - 450 cd/m2
• Contrast - 4000:1
• Viewing angle - H=178, V=178
• Frequency (H) - 48 KHz
• Frequency (V) - 50-66 KHz
• Pixel size (mm) - 0.51075 (H) x 0. 51075 (V)
• Reaction time (G-to-G) - 8 ms
• Number of colours - 16,7 millions

Systems and Signals

• Multisystem  (PAL BG/DK/I SECAM BG/DK)
• CATV ready
• 200 channels
• Automatic channels tuning
• Direct program choice
• "Recall" function (switching between last and current programs)
• Program sort function
• Tuner's frequencies:: VHF(L): 46,25-168,25 МГц; VHF(H): 175,25-463,25 МГц; UHF: 471,25-863,25 МГц: Mid band: X- Z, S1- S10; Super band: S11- S20; Hyper band: S21- S41


• Picture types 16:9, 14:9, 4:3, AUTO, PANORAMIC, ZOOM, CINEMA, SUBTITLE
• Function “noise reduction”
• 4 pre-set picture modes (CINEMA, DYNAMIC, PIXELLENCE, NATURAL)
• PIP/PAP Function
• Blue background and auto sound off in the case of none TV signal

Sound

• 2 speakers (2x6W)
• NICAM/IGR programs receiving
• Sound stereo system  (SRS TruSurround XT)
• Equalizer
• 6 pre-set sound modes (MUSIC, MOVIE, SPEACH, FLAT, CLASSIC, USER)
• “AVL” Function
• On-touch mute function

Others

• Teletext
• USB (.jpg viewing)
• Sleep timer (10…120 min)
• Child lock

Inputs and Outputs

• SPDIF output (rear)
• HDMI х 4  (1 rear, 1 - side)
• VGA (rear)
• SCART х 2  (rear)
• YPbPr (rear)
• AV IN (side)
• USB IN (side)
• Line audio output (including sub output) (rear)
• PC/YPbPr (rear)
• Earphones jack (side)
• RF IN (rear)

Completion

• LCD TV
• Remote Control
• 2 batteries for RC
• Table stand
• User's Manual
• Warranty card
