ORION

enlarge

Descriptions
Manual

Technical Performance

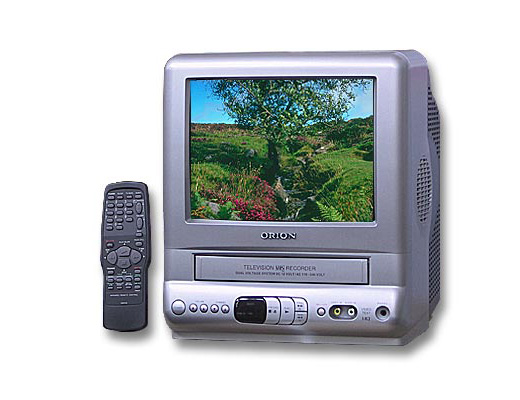

• Color Televideo (TV + VCR)
• 10” (23cm)
• Multisystem (PAL/ SECAM B/G, D/K) and NTSC playback (PAL 60 Hz)
• 80 channels memory
• Power source 110-240 VAC, 50-60 Hz/DC 12V
• Power consumption – 50W (AC 220V), 50W (DC 12V)
• Dimensions (WxDxH): 287x356x318,5 (mm)
• Weight: ~8,8 kg

TV

• Auto and manual channel tuning
• Teletext
• Multilingual OSD menu system

Video

• Timer recording
• Auto head cleaning
• NTSC playback on PAL TV Set
• Digital auto tracking
• Slowed, step-by-step, visual slowed/speeded up forward/backward playback
• Still picture
• Video recording system: VHS, 2 rotary heads helical scanning system
• TV monitor
• Index forward/back search (VISS)
• Real time tape counter

Channels

• Channels (tuners frequencies): VHF(L): 28-68 MHz; VHF(H): 175-230 MHz; UHF: 470-860 MHz
• Channels (CATV): Mid band (S1- S10): 106-175 MHz; Super band (S11- S20): 231-300 MHz
• Television system: PAL/SECAM B/G D/K

Inputs and Outputs

• Headphone jack
• Radio frequency (RF) antenna input
• Video/Audio input

Complement

• Remote controller
• 2 batteries (AAA)
• 12V DC car cord
• Telescopic antenna (with 300-75 ohm matching transformer)
• User's manual and warranty card
